Crosstalk Calculator

This program will estimate a crosstalk coefficient between two parallel traces for a variety of different configurations. Download Ultra_CT.zip here and unzip it in a convenient folder. The current version is 1.1, updated 12/12/97.  See, also, our associated article Crosstalk, Parts 1 and 2 . A screenshot of the calculator follows:

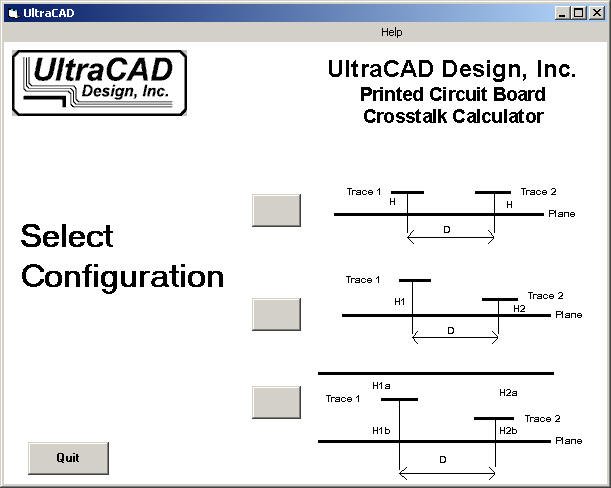

Opening selection screen, Ultra_CT Crosstalk Calculator

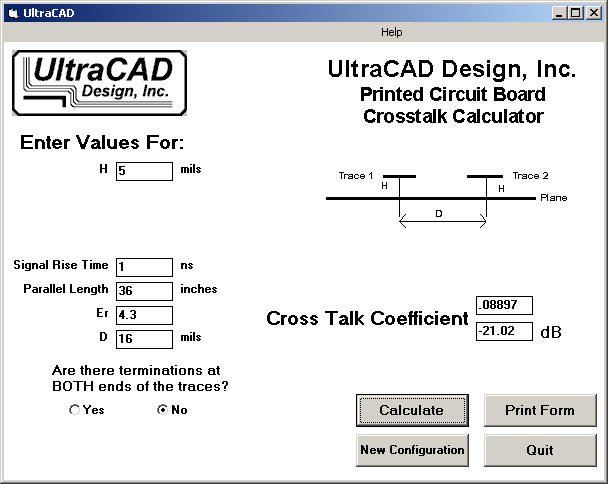

Main calculator screen.
